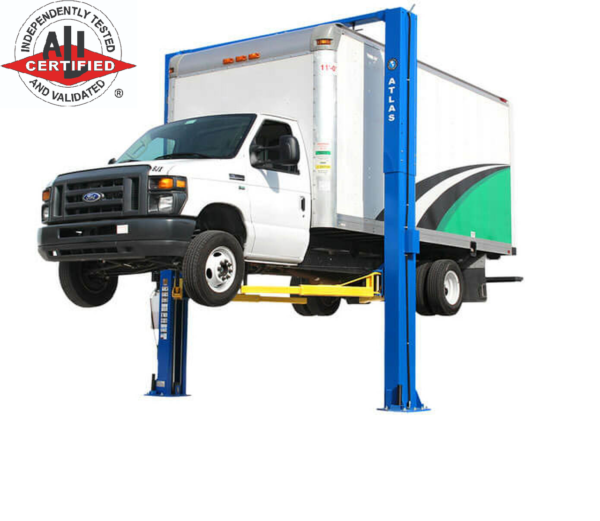

Apex 12 Plus
Call for Price
- 12,000 LB. capacity
- Commercial grade
- Single point lock release
- Symmetric design
- Powder coat finish
- Adjustable to three (3) heights: 12’ 4 1/2”
- (requires the purchase of additional shorter cables),
- 13′ 7 1/2”, and 14’ 7 1/2”
- Free 12 piece truck adapter set
- Anchor bolts included
- 5 Year Structural Warranty,
- 2 Year Power Unit Warranty
Specifications
Atlas Apex 12 Specifications |
Capacity |
12,000 lb. |
Overall Height |
Low Setting: 165″ (13′ 9″); High Setting: 177″ (14′ 9″) |
Height To Shut Off Bar |
Low Setting: 158 1/3″ (13′ 2 1/3″); High Setting: 170 1/3″Â (14′ 2 1/3″) |
Floor Width |
150 1/2″ (12′ 6 1/2″) |
Overall Width (with motor) |
155 3/4″ (12′ 11 3/4″) |
Outside Column to Outside Column |
139 1/4″ (11′ 7 1/4″) |
Clearance Between Columns |
122 2/3″ (10′ 2 2/3″) |
Drive Thru |
109 2/3″ (9′ 1 2/3″) |
Maximum Lift Height with Truck Adapters |
86″ (7′ 2″) |
Maximum Lift Height without Truck Adapters |
73 5/8″ (6′ 1 5/8″) |
Minimum Lowered Height |
6″ |
Column Dimensions |
7 3/4″ x 14 1/4″ |
Column Base Dimensions |
17″ x 20 1/2″ |
Arm Length |
38′ 1/2″ x 57′ 1/2″ / |
Thickness of Steel |
6mm |
Adapter Heights |
8 1/2″ x 4 1/2″ |
Motor/Electrical Requirement |
220 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended |
Shipping Weight |
2,100 lb. |
