2000 Series Aluminum Truck Bed - Extruded Floor

 Mounting hardware kit not included.  Call for pricing.

Standard Equipment

  • High Strength aluminum extruded floor with 3″ Aluminum I-beam cross members with approximately 16″ spacing
  • Heavy duty extruded rubrail
  • Extruded aluminum tie rail with stake pockets
  • Adjustable height headache rack
  • Louvered headache rack with LED lights
  • 3″ steel channel long sills, adjustable to 34″, 38″, or 42″ frame
  • Corrosion resistant
  • Heavy Duty Treadbrite tailboard
  • LED lights (6) stop, turn & tail and (4) back-up
  • LED clearance and side marker lights
  • Dual tag lights
  • Automotive grade harness with plug in connections
  • 30K Gooseneck ball plate with flush mount cover (2 5/16″ 30K ball included)
  • (1) Fuel filler kit
  • Hillsboro logo mudflaps

Popular Options & Accessories



  • Bolt-on and Drop in 4″ side and rear tail board
  • Aluminum Toolboxes (sizes vary)

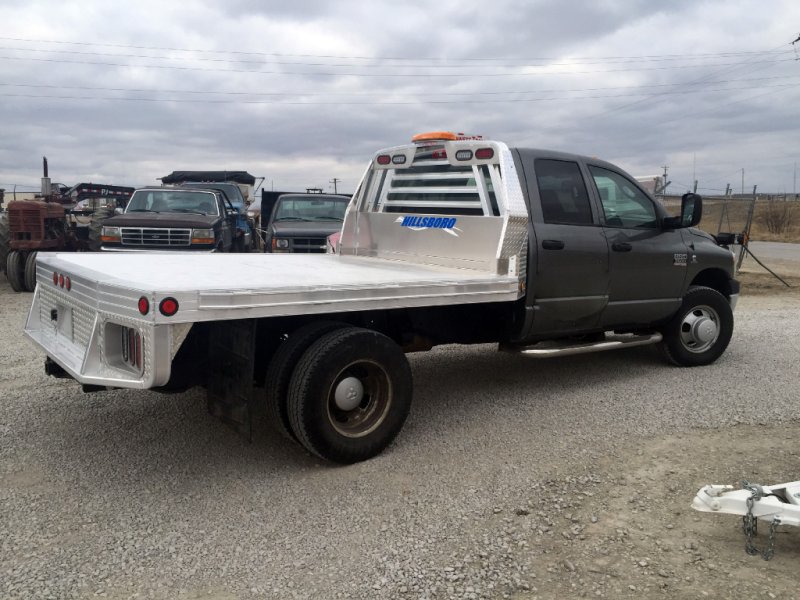

2500 Aluminum Truck Bed

Mounting hardware kit not included.  Call for pricing.

Standard Features

  • 3 Year Warranty
  • High Strength Aluminum Extruded Floor
  • Heavy Duty Tread Brite Tailboard
  • 3″ Aluminum I-beam cross members with approximate 16″ spacing
  • Heavy Duty 6″ tall extruded rubrail
  • Heavy Duty adjustable height headache rack with square tube louvers
  • 4″x2″ tube steel long sills, adjustable to 34″, 38″, 42″
  • Recessed aluminum castings for taillights and tag
  • Tapered rear with step
  • Tapered front on 96″ wide dual wheel beds
  • 3″ Extruded tie rail w/ stake pockets
  • Corrosion resistant
  • LED lights (6) stop, turn & tail and (4) back-up
  • LED clearance & side marker lights
  • Sealed wiring harness with plug-in connections
  • Lights and harness installed
  • 30K Gooseneck ball plate with flush mount cover (2 5/16″ 30K ball included)
  • 18K Receiver Hitch with 2 1/2″ tube
  • 2″ Adapter included
  • Mud flaps with Hillsboro logo

Popular Options & Accessories

  • Alumunum tool boxes

SLT Steel Truck Bed

Mounting hardware kit not included.  Call for pricing.

With their rugged construction, innovative features and superior quality, Hillsboro Steel Truck Beds offer the ultimate in quality features and options. Adjustable stringers let you install beds on any make or model of truck without modification, eliminating excess inventory and special orders. Stake pockets and tie rails let you secure loads quickly and easily. The PPG epoxy primer and polyurethane paint finish provide enhanced aesthetics and service life.

Optional, weather-resistant toolboxes add protected storage for tools and other equipment. Constructed from 14-gauge steel with a 10-gauge steel door, the box features a locking, stainless steel t-latch and recessed door with weather seal and greaseable hinges.

Standard Features

  • B&W compatible/ ready to accept Hillsboro B&W Conversion Kit
  • 2-year warranty
  • LED lights (6) stop, turn and (4) back-up LED clearance & side marker lights
  • Epoxy Primer
  • Black polyurethane paint
  • Louvered headache rack with lights
  • 14 ga. steel floor plate (7′ & 7.5′ wide beds)
  • 1/8″ steel floor plate (8′ & 8.5′ wide beds)
  • 3″ structural channel long sills, adjustable to 34″, 38″ & 42″ frame
  • Tie rail with stake pockets and rope ties
  • 30K gooseneck ball plate with flush mount cover
  • Dual tag lights
  • Sealed wiring harness with plug in connections
  • Hillsboro Mudflaps

Additional Options



  • 3″ Drop-in side rails
  • steel tool boxes

Hillsboro B & W Conversion Kit

$895.00

The Optional B&W Conversion Kit is designed for use in all aluminum Hillsboro truck beds only and includes the B&W Turnover Ball.  The B&W conversion is not compatible with Hillsboro’s STL truck bed model.

The Hillsboro Kit Part # is 74790. During the installation of the kit, the original truck bed ball assembly and flush mount cover are removed and will not be needed. The steel socket assembly included in the kit that locks in either the Turnover Ball, King Pin or Companion Hitch is installed with all required components.

The hitch cover included in the kit is made of .125 Tread Brite Aluminum. This aluminum cover is designed to be used on all Hillsboro Truck Beds.

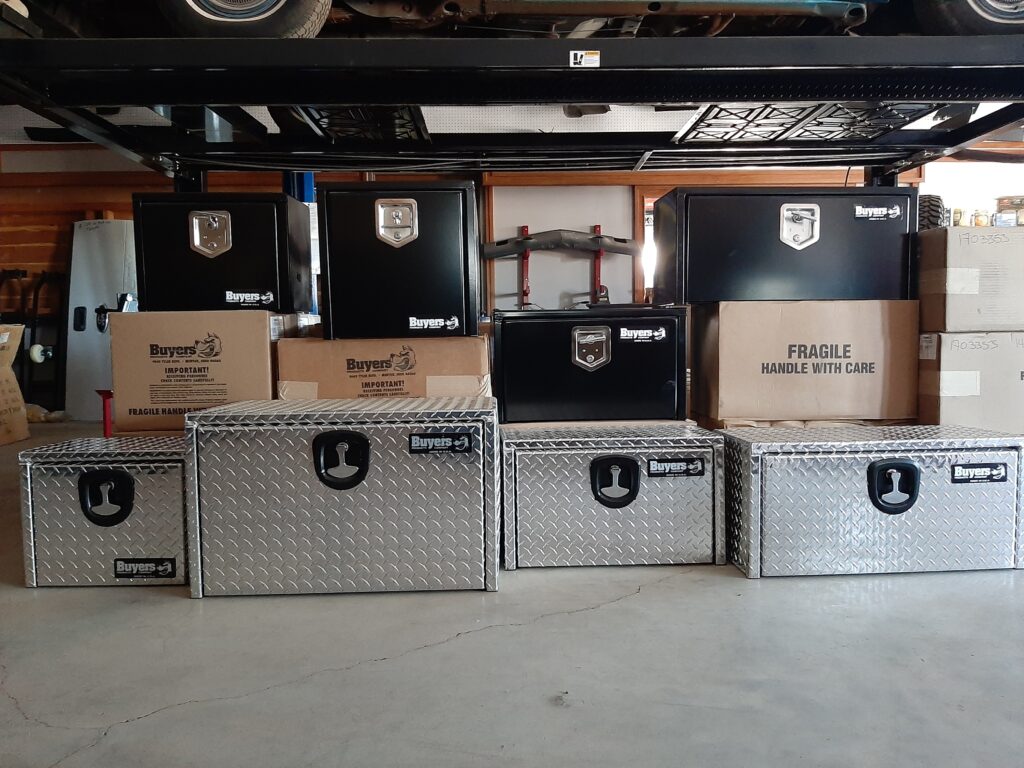

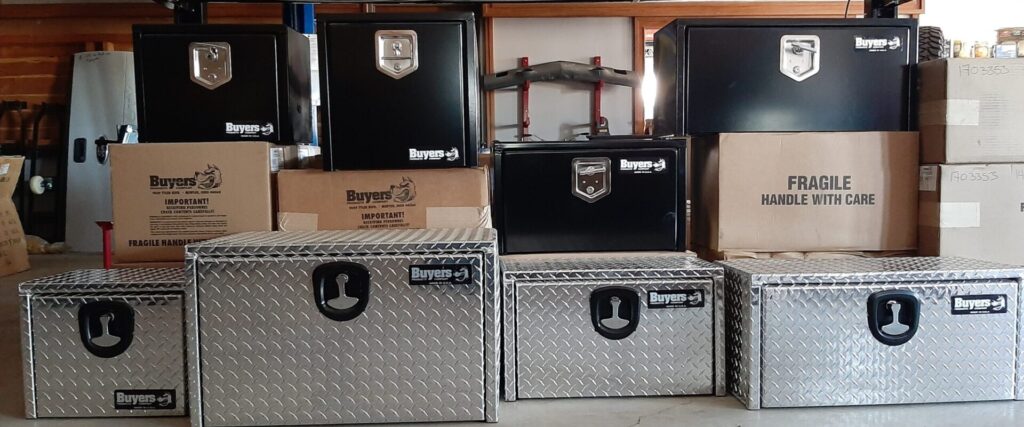

Tool Boxes

You can enhance your deck with our new line of Buyers steel and aluminum underbed tool boxes. Not only do they enhance your deck but it increases the storage in your truck.

ASK
