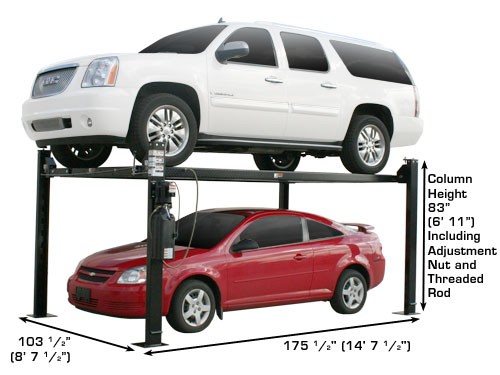

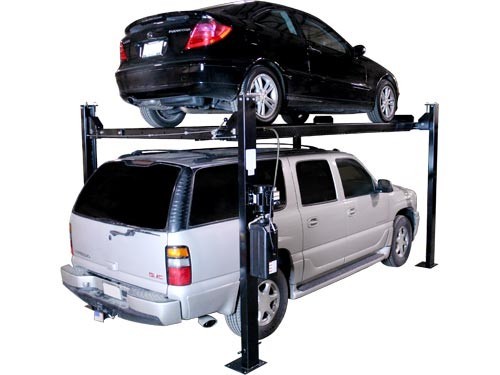

 Atlas Garage Pro 8,000 LB.
- $2,195.00
Lock Ladder Column Design:
The new Atlas Garage Pro 8,000 lb. Storage Lift has the "lock ladder" column design system. We believe that the lock ladder system is the safest locking system for any four post lift. The lock ladder system also provides an infinite number of runway locking positions. The "old-style" welded locks could not be adjusted. The lock ladder is adjustable inside the column so that our customers can "micro-manage" the correct runway height to accommodate any vehicle. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.
Safety Lock System:
This Atlas Garage Pro 8,000 lb. Storage Lift locking system offers a unique two position locking mechanism found only in commercial grade cable style four post lifts.
Flow Restrictor:
The Atlas Garage Pro 8,000 lb. Storage Lift has flow restrictor valves installed in the hydraulic system. Some lifts do not require a flow restrictor.
Wheel Chocks:
Set of 2 (for Free)
Zerk Fittings:
The Atlas Garage Pro 8,000 has zerk fittings in each corner to allow the proper flow of grease to the pulleys that are used to route the oversized cables.
Polyurethane Caster Wheels (Standard):
The Atlas Garage Pro 8,000 comes standard with polyurethane wheels on the caster kit. These no-mar wheels allow the operator to roll the lift over an expensive epoxy floor with little risk of damage. Even if you have and old concrete floor, the polyurethane wheels on the Atlas Garage Pro 8,000 make this lift easier to roll than the caster kit with the steel wheels.
Manual Single Point Release:
The Atlas Garage Pro 8,000 lb. Storage Lift has manual single point release that allows the operator to release all the safety locks at one time.
Does Not Need To Be Anchored To The Floor:
The Atlas Garage Pro 8,000 lb. Storage Lift DOES NOT need to be anchored to the floor. However, if you are using a four post above ground lift many times each day, the lift may "scoot" a little on a smooth concrete floor. All four post lifts will move slightly on a smooth concrete floor if there is a constant flow of vehicles on and off the lift. The stability and integrity of the lift will not be compromised by the slight "scooting" of the four post lift. To eliminate the possibility of any "scooting", we recommend you anchor (with just one anchor) two of the column bases to your concrete floor. This anchoring will prevent the lift from "scooting".
Installation:
Most of our above ground lift customers install their own car lifts. The average time to assemble the Atlas Garage Pro 8,000 lb. Storage Lift car lift is about four hours (two people).
- 8,000 lb. capacity
- Powder coat finish
- Diamond plated runways
- Single point lock release
- Caster kit with polyurethane wheels included
- Steel approach ramps included

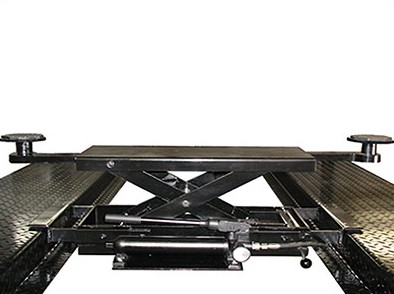

- Steel jack tray included
- Three plastic drip trays included
- Four wheel stops included
- Two rubber wheel chocks included
- Perfect for storing or working on vehicles
|
| Atlas
Garage Pro 8,000
Specifications |
| Capacity |
8,000
LB |
| Lifting
Height To Top Of Runway |
72"
(6') |
| Clearance
Under Runways |
67
½" (5' 7 ½") |
| Height
of Columns |
86"
(7' 2") |
| Overall
Width (Without Motor) |
104
½" (8' 8 ½") |
| Overall
Width (With Motor) |
115"
(9' 7") |
| Overall
Length with Approach Ramps |
206
¾" (17' 2 ¾") |
| Overall
Length without Approach Ramps |
175
½" (14' 7 ½") |
| Approach
Ramps |
36
3/8" (3' 3/8") |
| Runway
Width |
21
½" (1' 6 ½") |
| Runway
Length |
165
¾" (13' 9 ¾") |
| Runway
Thickness |
4
½" |
| Width
Between Runways |
37"
(3' 1") |
| Width
Between Runway Rails |
31
½" (2' 7 ½") |
| Outside
Runway to Outside Runway |
74
5/8" (6' 2 5/8") |
| Size
of Column |
6
1/4" x 3 3/8" |
| Clearance
Between Columns |
94
½" (7' 10 ½") |
| Length
Between Columns |
157
½" (13' 1 ½") |
| Base
of Column |
10
1/8" x 11 3/4" |
| Maximum
Wheel Base |
153
½" (12' 9 ½") |
| Drive
Thru (Outside of tire to
outside of tire) |
80
½" (6' 8 ½") |
| Cable
Diameter |
3/8" |
| Gauge
Of Steel |
6
Gauge (.1875"/ 3/16"
/ 4.75mm) |
| Motor |
110
Volt |
| Shipping
Weight |
1,720
LB. |
Locking
Positions
Under Runway
(+/ - 2") |
Locking
Positions
Top Of Runway
(+/ - 2") |
| 19
½" |
24" |
| 25
½" |
30" |
| 31
½" |
36" |
| 37
½" |
42" |
| 43
½" |
48" |
| 49
½" |
54" |
| 55
½" |
60" |
| 61
½" |
66" |
| 67
½" |
72" |
|

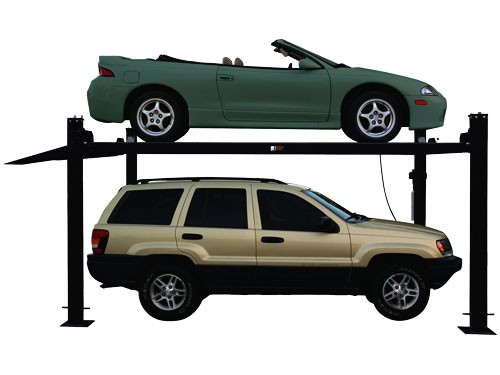

 Atlas Garage Pro 8K XLT
- $2,495.00
Lock Ladder Column Design:
The new Atlas Garage Pro XLT
8,000 lb. Deluxe Series XLT
Storage Lift has the “lock
ladder” column design system.
We believe that the lock ladder
system is the safest locking
system for any four post lift.
The lock ladder system also
provides an infinite number of
runway locking positions. The
“old-style” welded locks
could not be adjusted. The lock
ladder is adjustable inside the
column so that our customers can
“micro-manage” the correct
runway height to accommodate any
vehicle. The “lock ladder”
column system is the same column
system found on professional
grade lifts found in car
dealerships and automotive
service centers.
Safety Lock System:
This Atlas Garage Pro XLT 8,000
lb. Deluxe Series XLT Storage
Lift locking system offers a
unique two position locking
mechanism found only in
commercial grade cable style
four post lifts.
Flow Restrictor:
The Atlas Garage Pro XLT 8,000
lb. Deluxe Series XLT Storage
Lift has flow restrictor valves
installed in the hydraulic
system. Some lifts do not
require a flow restrictor.
Manual Single Point Release:
The Atlas Garage Pro XLT 8,000
lb. Deluxe Series XLT Storage
Lift has manual single point
release that allows the operator
to release all the safety locks
at one time.
Does Not Need To Be Anchored To The Floor:
The Atlas Garage Pro XLT 8,000
lb. Deluxe Series XLT Storage
Lift DOES NOT need to be
anchored to the floor. However,
if you are using a four post
above ground lift many times
each day, the lift may “scoot”
a little on a smooth concrete
floor. All four post lifts will
move slightly on a smooth
concrete floor if there is a
constant flow of vehicles on and
off the lift. The stability and
integrity of the lift will not
be compromised by the slight “scooting”
of the four post lift. To
eliminate the possibility of any
“scooting”, we recommend you
anchor (with just one anchor)
two of the column bases to your
concrete floor. This anchoring
will prevent the lift from “scooting”.
Installation:
Most of our above ground lift
customers install their own car
lifts. The average time to
assemble the Atlas Garage Pro
XLT 8,000 lb. Deluxe Series XLT
Storage Lift car lift is four
hours.
- 8,000 lb. capacity
- Powder coat finish
- Diamond plated runways
- Four wheel stops included
- Single point lock release
- Steel approach ramps included
- Perfect for storing or working on vehicles
|
Atlas
Garage Pro XLT 8,000 lb.
Deluxe Series XLT
Storage Lift Specifications |
| Capacity |
8,000
LB |
| Lifting
Height To Top Of Runway |
82
1/4" (6' 10 1/4 ") |
| Clearance
Under Runways |
77
15/16" (6' 5 15/16") |
| Height
of Columns |
94
3/8" (7' 10 3/8") |
| Overall
Width (Without Motor) |
109
1/2" (9' 1 ½") |
| Overall
Width (With Motor) |
119"
(9' 11 ") |
| Overall
Length with Approach Ramps |
222
1/2" (18' 6 ½") |
| Overall
Length without Approach Ramps |
190"
(15' 10") |
| Approach
Ramps |
37"
(3' 1") |
| Runway
Width |
20
1/4" (1' 8 1/4") |
| Runway
Length |
180
1/2" (15' ½") |
| Runway
Thickness |
4
½" |
| Width
Between Runways |
43" |
| Width
Between Runway Rails |
39
1/4 " |
| Outside
Runway to Outside Runway |
81"
(6' 9") |
| Size
of Column |
6"
x 3 ¼" |
| Clearance
Between Columns |
100
5/16 " (8' 4 5/16") |
| Length
Between Columns |
172
1/4 " (14' 4 1/4") |
| Base
of Column |
10
1/8" x 12" |
| Maximum
Wheel Base |
178"
(14' 10") |
| Drive
Thru (Outside of tire to
outside of tire) |
86
1/2 " (7' 2 1/2") |
| Cylinder
Length |
85
½” |
| Cylinder
Diameter |
3
1/3” |
| Cable
Diameter |
3/8" |
| Gauge
Of Steel |
6
Gauge (.1875"/ 3/16"
/ 4.75mm) |
| Motor |
110
Volt |
| Shipping
Weight |
1,914
LB. |
Locking
Positions
Under Runway
(+/ - 2") |
Locking
Positions
Top Of Runway
(+/ - 2") |
| 22" |
26" |
| 28" |
32" |
| 34" |
38" |
| 40" |
44" |
| 46" |
50" |
| 52" |
56" |
| 58" |
62" |
| 64" |
68" |
| 70" |
74" |
| 76" |
80" |
|
 Atlas 412 12,000 LB. Four Post Lift
- $3,295.00
Features:
The
Atlas 412 (12,000 LB. capacity
four post lift) incorporates
many structural and cosmetic
features that are found on lifts
costing thousands of dollars
more money. The Atlas 412 is
tested to ensure that this lift
system will perform flawlessly
at its rated capacities. The
Atlas 412 has been manufactured
to the same exacting
specifications for many
years.
The Atlas 412 uses a high
strength cable system (with a
under runway oversized hydraulic
cylinder) powered by a 220 volt
(single phase) power unit to
raise and lower the lift. Many
competitors use an “old style”
chain lifting system with an
exposed hydraulic cylinder
system. Old style chain lifts
are difficult to “level”
properly and the exposed
hydraulic cylinder is
responsible for numerous “door
dings”.
The Atlas 412 four post lift
incorporates a lock ladder
system in each column and all
four column locks are
simultaneously air activated
from the power unit column. The
runways are bolted to the cross
tubes, but can be adjusted
(moved in) if needed.
- Air operated single point lock release
- Mounting Hardware Included
- 5 Year Structural, 2 Year Power Unit and Cylinders Warranty
|
| Atlas
412 Four Post Lift |
| Capacity |
12,000
LB. |
| Lifting
Height |
75
½" (6' 3 1/2") |
| Overall
Width of Columns (Without Motor) |
126”
(10' 6") |
| Overall
Width of Columns (With Motor) |
135”
(11' 3") |
| Overall
Length with Approach Ramps |
230”
(19' 2") |
| Overall
Length without Approach Ramps |
200”
(16' 8") |
| Length
Between Columns |
184
¼” (15' 4 ¼") |
| Runway
Length |
186
½" (15' 6 ½") |
| Runway
Width |
22"
(1' 10") |
| Thickness
of Runway |
7” |
| Width
Between Runways |
44
½" (3' 8 ½") |
| Width
Between Runway Rails |
42"
(3' 6") |
| Outside
Runway to Outside Runway |
84
¾” (7' ¾") |
| Clearance
Under Runways |
68
¼” (5' 8 ¼") |
| Column
Dimension |
7"
x 5" |
| Base
of Column |
10
1/8” x 9” |
| Clearance
Between columns |
112
¼” (9' 4 ¼") |
| Height
of Columns |
82”
(6' 10") |
| Maximum
Wheel Base |
185"
(15' 5") |
| Drive
Thru |
98
½” (8' 2 ½") |
| Cable
Diameter |
1/2" |
| Motor |
2
HP, 220 Volt, Single phase |
| Shipping
Weight |
2,650LB. |
|
|
|

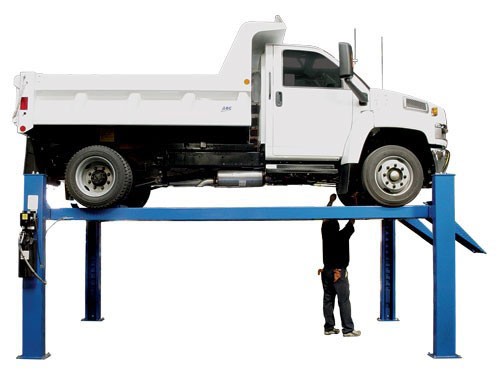

Pro 14K- $4,795.00
- 14,000
lb. capacity four post lift
- Five
year structural warranty
|
|
| Pro
14K Specifications |
| Capacity |
14,000
LB. |
| Lifting
Height |
74"
(6' 2") |
| Overall
Width of Columns (Without Motor) |
131”
(10' 11") |
| Overall
Width of Columns (With Motor) |
141”
(11' 9") |
| Overall
Length with Approach Ramps |
245”
(20' 5") |
| Overall
Length without Approach Ramps |
214”
(17' 10") |
|
4-Wheel
Alignment Wheelbase
With Optional Alignment Kit (Not
Included)
|
Maximum
155 in.
Minimum 94 in.
|
2-Wheel
Alignment Wheelbase
With Optional Alignment Kit (Not
Included) |
Maximum 163
in.
Minimum 88 in. |
| Length
Between Columns |
189”
(15' 9") |
| Runway
Length |
206"
(17' 2") |
| Runway
Width |
21
1/2" (1' 9 1/2") |
| Thickness
of Runway |
6
1/4” |
| Width
Between Runways |
43"
(3' 7") |
| Width
Between Runway Rails |
39
1/2" (3' 3 1/2") |
| Outside
Runway to Outside Runway |
83”
(6' 11") |
| Clearance
Under Runways |
67
” (5' 7") |
| Column
Dimension |
9
” x 6” |
| Base
of Column |
10
1/2” x 14 1/4” |
| Clearance
Between columns |
115”
(9' 7") |
| Height
of Columns |
89”
(7' 5") |
| Outside
Column to Outside Motor |
139”
(11' 7") |
| Maximum
Wheel Base |
190"
(15' 10") |
| Drive
Thru Clearance |
99
1/2” (8' 3 1/2") |
| Cable
Diameter |
1/2" |
| Gauge
Of Steel |
5
gauge (.2”, 5 mm) |
| Motor |
2
HP, 220 Volt, Single phase |
| Shipping
Weight |
3,050LB. |
Atlas
RJ-70 Rolling Jack- $1,695.00
($1,595 with purchase of lift)
The RJ-70 is a rolling jack that is
compatible with the Atlas Pro 14k
Lift. |
 |
Features
- Air/Hydraulic
- 7,000
LB. capacity
- Heavy
duty / commercial grade
- Scissor
mechanism allows for level lifting
- Compact
size with a low profile
- Adapters
included
- Safety
lock positions
- Smooth
rolling action
- Adapter
storage
- Powder
coated finish
The
Atlas RJ-70 is a heavy duty rolling jack
designed to lift and support 7,000 LB. The
commercial grade RJ-70 rolling jack is used
to raise the front or rear portion of a
vehicle allowing the operator of a four post
above ground lift to perform wheel and brake
service. Most commercial shops buy two of
these hydraulic rolling jacks, so that the
entire vehicle can be supported in the air
at the same time
The
Atlas RJ -70 is the perfect accessory to our
Atlas Pro14K four post lift.
| RJ-70
Specifications |
| Maximum
Width |
62
1/2" |
| Minimum
Width |
37" |
| First
Locking Position |
9
3/4" |
| Second
Locking Position |
14" |
| Maximum
Lifting Height |
15
1/8" |
| Small
Adapter |
3" |
| Large
Adapter |
6" |
| Maximum
Capacity |
7,000
LB. |
| Shipping
Weight |
350
LB. |
Pro-Jack-
$795.00
($745
if purchased with hoist)
- 3,500
lb. capacity
- manually
operated
|
 |
The
Direct Lift Pro Jack 3500 is an economical
sliding jack that makes any four post lift
complete. This versatile jack requires no
air or electricity, operates by hydraulic
hand pump, and is adjustable to fit most
four-post lifts.
| Direct
Lift Pro-Jack 3500 Specifications |
| Capacity |
3,500
LB. |
| Minimum
Width |
29
1/2" |
| Minimum
Width with Arms In |
39
1/2" |
| Maximum
Width with Arms Out |
64
3/4" |
| Minimum
Height with Lift Pad |
3
1/2" |
| Lifting
Pad |
1
3/8" |
| Short
Adapter |
1
1/4" |
| Tall
Adapter |
5" |
| Raised
Height without Adapter |
11" |
| Raised
Height with Small Adapter |
12
1/4" |
| Raised
Height with Large Adapter |
16" |
| Raised
Height with Small and Large Adapter |
17
1/4" |
| Shipping
Weight |
350
LB. |
|
Pro 6 MR-
$1,795.00
- Full
6000 lbs. capacity
- Portable,
easy to move
- Two
hydraulic cylinders
- Fast:
20 - 30 seconds
- Safety
locks at any work height
- Truck
adapters included
|
|
| Pro
6MR Specifications |
| Capacity |
6,000
LB. |
| Height-Lowered
(Swing Arms) |
5" |
| Height-Raised
Maximum |
54"
(4' 6") |
| Width |
41"
(3' 5") |
| Length |
83"
(6' 11") |
| Small
Truck Adapter |
1
1/2" |
| Large
Truck Adapter Lowered |
5
1/2" |
| Large
Truck Adapter Raised |
7
1/2" |
| Shipping
Weight |
1,050
LB. |
| Motor |
110V,
1HP |
|

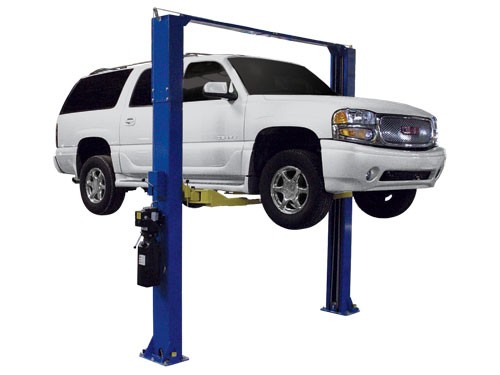

 Atlas
OH9000
- $2,195.00
The Atlas OH 9000 has dual piece
adjustable height columns. The
Atlas 9000 can be installed
under a 12’ ceiling and if you
have the room...the overhead
support can be raised all the
way to 12’ 6 ½” for maximum
lifting capabilities for tall
vehicles.
Super-Symmetric Arm
Configuration: Our super
symmetric arm configuration is a
great improvement over the
traditional asymmetric or
symmetric arm configuration.
Direct Drive Cylinders: Low
pressure direct drive cylinders
in each column attach to a
unique carriage design. Direct
drive cylinders are more
efficient and last longer than
the chain over half cylinders
found in many low priced two
post lifts.
Includes Three Piece Truck
Adapter Set: The Atlas OH
9000 comes standard with a three
piece truck adapter set. The
Atlas OH 9000 (with the entire
truck adapter set installed) can
lift a vehicle up to 82.5”.
The three piece truck adapter
set offers many more lift height
combinations than standard two
piece truck adapter sets.
Single Point Lock Release: The
Atlas OH 9000 two post lift has
single point release which makes
it easy for the operator to
unlock both column locks from
one column.
Overhead Bar Configuration: The
overhead bar configuration of
the Atlas OH 9000 leaves the
floor area between the columns
open, and allows the operator to
easily roll a transmission jack
or a tool box under the car.
Padded Automatic Shut-Off Bar:
The padded shut-off bar located
below the cross beam prevents
the top of the vehicle from
being damaged by hitting the
cross beam. The padded bar,
which contacted automatically
shuts of the motor on the power
unit to prevent the vehicle from
being lifted.
Symmetric Columns: The
symmetric column design provides
a much wider drive through than
the asymmetric designed columns.
Packaging: The Atlas OH 9000
is packaged in a metal frame
that can be hauled in the bed of
most standard pickup trucks.
Electrical Requirement: The
electric motor for the power
unit requires 220 Volt (single
phase) 60 Hz. We recommend using
at least a 10 gauge (grounded)
wire from the electrical panel.
The power unit has a short
pigtail (no plug) that can be
wired to either a quick
disconnect box (mounted on the
lift column) or to a male/female
plug combination. A 30 amp
breaker is recommended. Click
here to read more...
Installation: Most of our
above ground lift customers
install their own car lifts. The
average time to install the
Atlas OH 9000 car lift is four
hours. We provide detailed
installation instructions with
all our two post above ground
lifts and our four post above
ground lifts.
Options:
The
Atlas OH9000 is now adjustable!
You can add an additional 2 feet
(24 inches) to the height of
your Atlas OH 9000 cross bar to
accommodate taller vehicles...or
you can add 6 extra inches of
width between the columns to
allow extra wide vehicles and
extra wide trailers to be pulled
through.
The Atlas EXH9 kit and the Atlas
EXW9 kit can be purchased with
your new Atlas OH 9000 or at a
later date if you find the need
to increase the height or the
width of your Atlas OH 9000.
Features
- Super-Symmetric
Arms (better than
asymmetric)
- Adjustable
Height Columns
- Symmetric
Columns
- Overhead
Design
- Atlas
Power Coat powder coat
finish
- 9,000
lb. capacity
- Clear
Floor Design
- Free
Truck Adapters
- Mounting
Hardware Included
- 5
Year Structural Warranty, 2
Year Power Unit Warranty
|
| Atlas
OH9000 Specifications |
| Setup |
Low |
High |
| Capacity |
9,000
LB. |
|
| Lifting
Time |
Ask Your Salesperson |
|
| Overall
Height |
143
¾" (11' 11 ¾") |
150
½" (12' 6½") |
| Padded
Bar Height |
136
¼" (11' 4 ¼") |
143"
(11' 11") |
| Overall
Floor Width |
135"
(11' 3") |
|
Outside
Column to
Outside Column |
125
¾ (10' 5 ¾") |
|
Maximum
Lift Height
(Without Adapters) |
66
½" (5' 6 ½") |
72
3/8" (6' 3/8") |
Maximum
Lift Height
(With Adapters) |
77"
(6' 5") |
82
7/8" (6'10 7/8") |
| Minimum
Pad Height |
4" |
|
| Inside
Column |
112
1/8" (9' 4 1/8") |
|
| Column
Size |
6
¾" x 10 5/8" |
|
| Column
Thickness of Steel |
.15" |
|
| Drive
Thru |
97
¼" (8' 1 ¼") |
|
| Base
Of Lift |
15
5/8" x 17 5/8" |
|
| Cable
Diameter |
.367" |
|
Motor/Electrical
Requirement |
2HP,
220 volt
single (1) phase
A 30 amp breaker is
recommended
|
|
| Shipping
Weight |
1,460
LBS. |
|
|
Requires
a minimum of 4" of
concrete with 3000 psi.
All lifts come with a step by
step instruction manual.
|
|

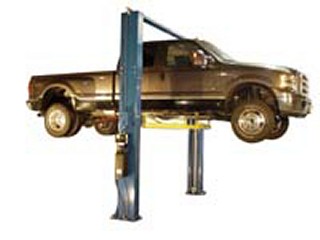

 Atlas
PV-10P
- $2,695.00
The Atlas PV-10P is the perfect
choice for use in either a large
commercial service department or
for the "pole barn"
owner who wants the
"biggest and baddest"
lift in the county. The Atlas
PV-10P is designed and
engineered to safely lift (and
work on) everything from a Smart
Car ® to a one ton diesel
dually.
The Atlas PV-10P (the
"P" means
"padded") incorporates
a "padded" shut-off
bar to protect the top of the
vehicle from contacting the
crossbar. The carriages are
equipped with "padded"
protective (thick rubber) covers
to help prevent the vehicle’s
doors from damage if opened into
the columns or carriages.
The truck adapter set has been
augmented (12 pieces vs. 8
pieces) and the rubber lift pad
has been reinforced to ensure a
solid contact with the vehicle’s
lifting point.
Hydraulic Cylinder
Configurations: A newly
designed cylinder configuration
for the Atlas PV-10P lift.
There are two popular hydraulic
cylinder configurations used in
two post electric/hydraulic
above ground lifts:
Versatility: The PV-10P
two post car lift is designed to
offer that extra amount of
lifting capacity to safely lift
dual wheel pick up trucks or
fully loaded ¾ ton or ½ ton
pick up trucks. The Atlas PV-10P
also offers an extremely low
lift pad position on the
versa-metric lift arm
configuration. This low pad
height will allow the operator
to position the lift arms under
most small cars (with low pick
up points) and heavier pick up
trucks.
The peg style truck adapters
included with the Atlas PV-10P
two post car lift are necessary
to lift vehicles with running
boards. The Atlas PV-10P peg
style truck adapters (12
extensions) can be combined to
raise the lift pads to reach the
frame of most pick up trucks
without damaging the running
boards.
The Atlas PV-10P has symmetrical
columns and includes a set of
versa-metric arms. These arms
can be configured into the
symmetrical position to lift a
full loaded pick up truck OR
these arms can be configured to
the asymmetric position to offer
easier opening of the front door
on some vehicles.
The Atlas PV-10P two post above
ground lift has single point
release, overhead above ground
configuration, versa-metric arm
configuration. The Atlas PV-10P
car lift is powered by a 220
Volt (single phase) power unit.
Flow Restrictor: Many of
our two post and four post lifts
manufactured in our off shore
factory (after 08-01-07) have
flow restrictor valves installed
in the hydraulic system. Some
lifts do not require a flow
restrictor.
Electrical Requirement:
The electric motor for the power
unit requires 220 Volt (single
phase) 60 Hz. We recommend using
at least a 10 gauge (grounded)
wire from the electrical panel.
The power unit has a short
pigtail (no plug) that can be
wired to either a quick
disconnect box (mounted on the
lift column) or to a male/female
plug combination. A 30 amp
breaker is recommended.
The electric motor for this
power unit requires 220 Volt
(single phase) 60 Hz. We
recommend using at least a 10
gauge (grounded) wire from the
electrical panel. The power unit
has a short pigtail (no plug)
that can be wired to either a
quick disconnect box (mounted on
the lift column) or to a
male/female plug combination.
We recommend that the power unit
to NOT BE HARDWIRED directly to
the main supply power cord.
There should be some type of
"quick disconnect" in
close proximity to the power
unit.
The 220 volt (single phase)
motor will run on a 208 volt to
a 240 volt power supply. Rule of
thumb is that a 220 volt motor
will operate effectively within
a 10% plus or minus range of the
supplied voltage. Based upon
that assumption, a 220 volt
motor will operate within a
range of about 200 volts to 242
volts.
The 220 volt electric motor that
is used on the power unit may
vary between 1.5 HP. - 3 HP. The
horsepower rating of the motor
will not influence the
"lifting power" of the
lift. The motor is used to
pressure a hydraulic pump. The
pressure level of the hydraulic
pump is preset to provide the
correct amount of hydraulic
pressure for the lift to work
properly.
Motor manufacturers recommend
that you use (wire the lift) a
30 amp service for this power
unit. Power unit manufacturers
use motors from several
different electrical motor
manufacturers. The 30 amp
electrical service will provide
enough power for the motor to
operate properly, and also
protect the motor from damage.

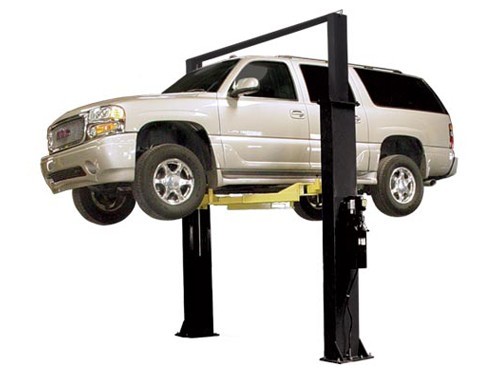

Installation: The Atlas
PV-10P two post car hoist should
be installed on a solid concrete
floor. This PV-10P concrete
floor should have a minimum of
four (4) inches of concrete with
3000 PSI. The Atlas comes with
the mounting hardware to anchor
your two post lift to the
appropriate concrete floor.
Most of our above ground lift
customers install their own car
lifts. The average time to
install the Atlas PV-10P car
lift is four hours.
We provide detailed installation
instructions with all our two
post above ground lifts and our
four post above ground lifts.
Safety Labels: In a
concerted effort to improve
customer awareness as to the
correct operation of our two
post and four post above ground
lifts, the factory is affixing
the ANSI (ALI/101S) safety
labels to our Atlas and Direct
above ground vehicle lifts
(after 08-01-07). These ANSI
(ALI/101S) safety labels help to
alert the operator as to certain
potential dangers that may exist
in the normal operation of the
lift.
Features
- Commercial
Grade
- Single
Point Lock Release
- Versa-Metric
Arms
- "Padded"
Shut-off Bar
- Thick
rubber covers on
carriages
- Atlas
Power Coat powder coat
finish
- Adjustable
Height - 11'10" or
12'2"
- Free
12 piece truck adapter
set
- Mounting
Hardware Included
- 5
Year Structural Warranty, 2
Year Power Unit Warranty
| Atlas
PV-10P Specifications |
| Setup |
Low |
High |
| Capacity |
10,000
LB. |
10,000
LB. |
| Lifting
Time |
Ask Your Salesperson |
Ask Your Salesperson |
| Overall
Height |
142"
(11' 10") |
146"
(12' 2") |
| Overall
Width |
137-3/8"
(11' 5 3/8") |
137-3/8"
(11' 5 3/8") |
| Outside
Column to Outside Column |
125"
(10' 5") |
125"
(10' 5") |
| Maximum
Lift Height |
79" |
|
| Minimum
Pad Height |
4" |
|
| Between
Columns |
110-3/4"
(9' 2 3/4") |
110-3/4"
(9' 2 3/4") |
| Column
Size |
14
1/2" x 7 1/2" |
|
| Column
Thickness of Steel |
2
gauge (.24”, 6mm) |
|
Drive
Thru
Symmetric/Asymmetric
Configuration |
96"
(8')
90" (7' 6") |
96"
(8')
90" (7' 6") |
| Base
of Lift |
17
1/2" x 20 1/2" |
|
| Height
Shut-Off |
136"
(11' 4") |
140"
(11' 8") |
| Cable
Diameter |
.375" |
|
| Motor/Electrical
Requirement |
2HP,
220 volt single (1)
phase. A 30 amp breaker is
recommended |
|
| Shipping
Weight |
1,875LB |
|
|
|
 Atlas
BP9000 - $2,050.00
Description: The Atlas
BP9000 is a base-plate two-post
lift designed for low ceiling
garages. The total column height
of 111" (9 feet 3 inches)
allows this lift to be installed
in almost any professional or
home garage with a ceiling as
low as 9 feet 6 inches.
Super-Symmetric Arm
Configuration: Our super
symmetric arm configuration is a
great improvement over the
traditional asymmetric or
symmetric arm configuration.
The column configuration
(symmetric or asymmetric) does
not affect the ease of getting
in or out of the vehicle. The
position of the car between the
columns is the important factor.
The super symmetric arm
configuration offers many
different lift point
configurations that are far
superior to either a strictly
asymmetric or symmetric arm
design.
Atlas lifts have symmetric
columns to allow for the maximum
drive through width.
"Turned" or asymmetric
columns DECREASE the
"drive-through" width
and are not popular with
customers working on pickup
trucks or SUVs.
Most customers demand the widest
possible drive through column
width AND a set of adjustable
arms that offer MULTIPLE lift
point configurations.
Most of our ATLAS two post lifts
deliver both of these features.
Our super symmetric arm
configuration incorporates
shorter three stage FRONT arms
and LONGER two stage REAR arms.
These super-symmetric arms allow
you to lift a car or short wheel
based truck in an asymmetric
configuration...OR...lift a
longer truck (with or without a
load in the bed) in the
symmetric configuration.
Traditional asymmetric FRONT
arms cannot be adjusted to be
parallel to each other. This
means that the arm lift pads are
"inside" of the
columns and make the "drive
through" area narrower. The
narrower "drive through
area" is not a big deal if
you are just lifting passenger
cars and small SUVs. However, if
you are lifting wider vehicles
(pick-up trucks)...then you need
the maximum "drive
through" space. The Atlas
super symmetric (telescoping
three stage) front arms can be
opened parallel to each other to
allow for a maximum "drive
through" space.
These three stage arms can be
collapsed to only 26 inches...so
that short arms will slide under
the front of the car, and allow
the car to be positioned 30%
(vehicle length) forward of the
column and 70% (vehicle length)
to the rear of the column. The
passenger door will open far
enough for easy egress or
ingress.
Old school technicians insist
that they MUST have a lift with
asymmetric arms or they cannot
get in or out of the car.
This statement is not 100%
accurate. What these "old
school" mechanics really
want is the "maximum drive
through" width between the
columns…and collapsible arms
that can be configured
(telescoped in) to lift short
wheel based cars. This
configuration will allow the
operator to open the front door
wide enough to exit the car
easily. They also want all the
arms to telescope out to provide
maximum support under a long
wheel based truck.
The super-symmetric Atlas arms
allow our customers to
experience the benefits of both
the asymmetric and symmetric
designed arms.
There are hundreds of different
vehicles with dozens of
different lifting points. Our
customers want to be able to
pull the vehicle between the
columns, exit the vehicle with
ease, properly position the lift
arms under the vehicle, and
raise the vehicle to the desired
working height. Pretty simple.
2-Stage and 3-Stage Arms: The
Atlas BP9000 includes 2-stage
rear arms and 3-stage front arms
which allows the operator to
collapse the front arms to
easily lift a short wheel based
vehicle and extend the arms to
raise a long wheel based
vehicle.
Features: The Atlas BP9000
incorporates an innovative
standard manual single-point
safety release, automatic arm
restraints, powder coat finish,
and heavy-duty chain mounted
over dual reliable hydraulic
cylinders (one cylinder in each
column).
Chain-Over-Roller Cylinder
Configuration: The Atlas
BP9000 has the chain-over-roller
cylinder configuration.
There are two popular hydraulic
cylinder configurations used in
two post electric/hydraulic
above ground lifts:
The base plate two post above
ground lift implements the
chain-over-roller configuration.
This is the only hydraulic
cylinder system that is possible
in the base plate lift. The base
plate two post above ground is
designed for “low ceilings”.
The direct drive hydraulic
cylinder configuration cannot be
used in the base plate lift
because the hydraulic cylinder
would extend above the 9’ 3”
column when the lift arms were
raised to the maximum height.
The “overhead” two post
above ground lift may
incorporate either the direct
drive hydraulic cylinder or the
chain-over-roller hydraulic
cylinder.
Super Single-Point
Technology: A revolutionary
designed manual single-point
safety release system for the
BP9000 9,000lb. base-plate lift.
The super single-point manual
release allows the operator to
unlock both column locks from
the power unit column.
Many manufacturers incorporate
24 volt electro-mechanical lock
release systems that are
complicated and unreliable. A
manual single-point lock release
system provides a mechanically
proven system that will perform
flawlessly for many years.
Double Lock System: A
revolutionary double lock system
installed in both lift columns.
This new lock system
incorporates two locking
mechanisms for added safety. The
double lock system is
automatically activated as the
lift is raised. When the vehicle
reaches the desired height, the
lift is lowered into the next
lowest locking position. When
the vehicle is ready to be
lowered to the ground, the
double lock system is disengaged
by pulling a handle located near
the power unit. There is no need
for the operator to go to both
columns and manually unlock both
column locks. All lifting and
lowering operations are
controlled from one column post.
Double safety locks built into
each column that can be unlocked
by one release lever make the
Atlas BP9000 base plate lift the
safest and easiest to operate
base plate lift in the Industry.
Two locks...one release...no
hassle...available only from
ATLAS!
Electrical Requirement: The
electric motor for the power
unit requires 220 Volt (single
phase) 60 Hz. We recommend using
at least a 10 gauge (grounded)
wire from the electrical panel.
The power unit has a short
pigtail (no plug) that can be
wired to either a quick
disconnect box (mounted on the
lift column) or to a male/female
plug combination. A 30 amp
breaker is recommended.
Features
- Dual
hydraulic chain-drive
cylinders made on ANSI
standard
- Self-lubricating
HMW Polyethylene sliders and
bronze bushings
- Single-point
release allows both columns
to be disengaged
simultaneously
- Automatic
arm restraints
- Super-Symmetric
Arms (better than
asymmetric)
- Base
plate Design
- Powder
coat finish 9,000 lb.
capacity
- Free
Truck Adapters
- Mounting
Hardware Included
- 5
Year Structural Warranty, 2
Year Power Unit Warranty
| Atlas
BP9000 Specifications |
| Capacity |
9,000
LB. |
| Lifting
Time |
Ask Your Salesperson |
| Overall
Height |
111
½" (9' 3 ½") |
| Overall
Floor Width |
136
3/8" (11' 4
3/8") |
| Outside
Column to Outside Column |
128
½" (10' 8 ½") |
| Maximum
Lift Height |
86"
(7' 2") |
| Minimum
Pad Height |
3
½" |
| Base
Plate Width |
11" |
| Inside
Column |
112"
(9' 4") |
| Drive
Thru |
103"
(8' 7") |
| Column
Size |
8"
x 10 7/16" |
| Column
Thickness of Steel |
5
gauge (.2”, 5.08mm) |
| Cable
Diameter |
.375" |
| Base
Of Lift |
(17
½" x 21 ½") |
| Motor/Electrical
Requirement |
2.5HP
220 volt single (1)
phase.
A 30 amp breaker is
recommended |
| Shipping
Weight |
1,400
LB. |
| Requires
a minimum of 4” of
concrete with 3000 psi. |
| All
lifts come with a step
by step instruction
manual. |
|
|
| Atlas
Pro 12- $3,395.00
Features
- 12,000
LB. capacity
- Commercial
grade
- Single
point lock release
- Symmetric
design
- Powder
coat finish
- Adjustable
height 13’8”-14’8”
- Truck
adapters included
- Anchor
bolts included
|
 |
|
Atlas
Pro 12 Specifications
|
|
Setup
|
Low
|
High
|
|
Capacity
|
12,000
LB.
|
12,000
LB.
|
|
Lifting
Time
|
55
seconds
|
55
seconds
|
|
Overall
Height
|
164”
(13’8”)
|
176”
(14’8”)
|
|
Overall
Width
|
150”
(12’6”)
|
150”
(12’6”)
|
|
Overall
Width (without motor)
|
139”
(11’7”)
|
139”
(11’7”)
|
|
Maximum
Lift Height
|
79"
|
|
|
Minimum
Pad Height
|
6"
|
|
|
Between
Columns
|
123
1/2” (10’ 3 1/2”)
|
123
1/2” (10’ 3 1/2”)
|
|
Column
Size
|
7
1/2" x 14 1/2"
|
|
|
Column
Thickness of Steel
|
2
gauge (.24”, 6mm)
|
|
|
Drive
Through
|
112
1/2” (9’ 4 1/2”)
|
112
1/2” (9’ 4 1/2”)
|
|
Base
of Lift
|
17
1/2" x 20 1/2"
|
|
|
Cable
Diameter
|
.375"
|
|
|
Motor
|
2
HP, 220 Volt, Single phase
|
|
|
Shipping
Weight
|
2,100
LB.
|
|
Requires
a minimum of 6” of concrete with
3000 psi.
|
|
|
|
