Atlas
WB11 Wheel Balancer $1,795.00
The WB-11 is a self-calibrating
computer wheel balancer. There is no
need to calibrate the balancer each
morning when you turn it on. The Atlas
WB-11 has several different wheel
weight positioning modes that allow
the operator to the spin the wheel
assembly one time and identify several
different weight positions with just a
touch of the button.
Features
- Automatic
positioning where to apply
weights.
- Automatic
and pedal operated brake.
- Automatic
start/stop when hood is
lowered/raised.
- Static
and dynamic balancing modes.
- Rapid
optimization (OPT)
- Self-diagnosis
- Self-calibration
- Exceptional
stability in reading the unbalance
between planes.
- Display
in grams or ounces, in mm or
inches.
- No
anchor-down installation needed.
|
|
|
Atlas
WB11 Wheel Balancer
Specifications
|
| Max
Tire Diameter |
39" |
| Rim
Sizes (cars and light trucks) |
10"-26" |
| Rim
Width |
1
½"-20" |
| Shaft
Size |
40mm |
| Max.
Wheel Weight |
120
LBS. |
| Balancing
Speed |
150
R.P.M |
| Automatic
Data Entry |
NO |
| Truck
Adapter Set |
Optional |
| Warranty |
1
year limited |
| Shipping
Weight |
355
LBS. |
| Power
Supply |
110V
1Ph |
| Motor |
¼
HP |
| Display |
Standard
or Metric |
| Accuracy |
1
g |
| Weight
Position Resolution |
1.4
Degrees |
| Self
Calibration |
YES |
|
|
 |
Atlas
WB 42 $1,795
The
Atlas WB 42 includes a safety hood and
the original Hawkea® quick nut
release. The Atlas WB 42 features a
newly improved keyboard, and advanced
computer software.
|
|
|
Atlas
WB42 Wheel Balancer Specs
|
| Max
Tire Diameter |
50"* |
| Rim
Sizes (cars and light trucks) |
10"-32" |
| Rim
Width |
1.5"-17"* |
| Max
Wheel Weight |
140
LBS. |
| Balancing
Speed |
200
R.P.M |
| Automaitc
Data Entry |
NO |
| Truck
Adapter Set |
Optional |
| Limited
Warranty |
1
year, parts only |
| Shipping
Weight |
300
LBS. |
| Power
Supply |
110
V |
| Display |
Standard
or Metric |
| Accuracy |
1
g |
| Weight
Position Resolution |
1
Degree |
| Self
Calibration |
YES |
|
|
|
*With
removable safety hood assembly
detached
*Depending
on offset and backspacing
|
|
 |
Atlas

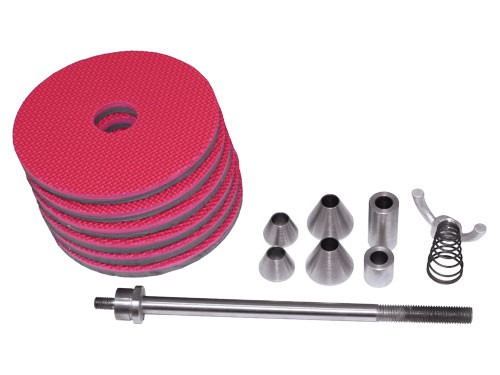

MC-XLT Kit $350
The
MC adapter kit is designed to balance
wheels with a center hole diameter
from .551 inch (14MM) to 1.25 inch
(31.75MM).
|
|
 |

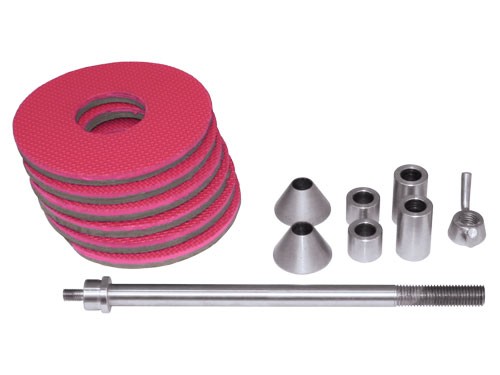

Atlas
MC-XLT Kit $450
The MC XLT adapter kit is designed to
balance wheels with a center hole
diameter from .75 inches (19MM) to 1.5
inches (38.1MM)
|
